Hydrogen fuel cell drones use stored hydrogen and oxygen from the air to generate electricity for electric propulsion. A fuel cell can support long flights without carrying the entire mission's energy in batteries. The advantage depends on the complete installation: hydrogen tank, fuel cell, cooling, power electronics, reserve battery, and the power the aircraft actually needs.

The central distinction is between energy and power. More usable hydrogen can extend a flight; it cannot make an undersized fuel cell sustain a higher load. A hybrid battery can cover peaks, but its remaining charge must also support the planned landing or recovery.

On This Page

How a hydrogen fuel cell powers a drone

In a proton exchange membrane, or PEM, fuel cell, a catalyst separates hydrogen into protons and electrons. Protons cross the membrane; electrons travel through an external circuit, supplying electrical power. At the other electrode, oxygen combines with those protons and electrons to form water. The reaction also releases heat. Hydrogen is consumed electrochemically rather than burned in a piston engine. The Department of Energy's fuel-cell explanation describes this operating principle.

Individual cells are connected in a stack to obtain useful voltage. The stack converts fuel into electricity; the tank stores the mission's fuel. An electric motor and its controller still turn the propeller or rotor.

PEM is attractive for mobile systems because of its relatively low mass and volume and comparatively low operating temperature. Fuel quality matters: DOE identifies the platinum catalyst's sensitivity to carbon monoxide. A general claim that a supply is “hydrogen” does not establish that its impurities meet an exact module's fuel specification. See DOE's fuel-cell types.

This explanation concerns hydrogen-fed PEM systems. It does not describe hydrogen combustion or a methanol reformer, which introduces a different fuel-processing system.

The complete system and its interfaces

A practical installation has three connected paths: hydrogen delivery to the stack, air and heat management around it, and electrical power delivery to the aircraft. A controller coordinates these paths and reports their condition.

The following integration questions combine DOE's system description with the model-specific IE-SOAR 2.4 kW data sheet. They are engineering questions, not a universal wiring specification.

System elementJobInterface to establish
Cylinder, valve, and regulatorStore hydrogen and deliver it at the required pressureCompatible materials, pressure and flow limits, mounting, isolation, and fuel quality
PEM stackConvert hydrogen and air into DC electricityNet continuous output over the intended operating envelope
Air, cooling, and water managementSupply reactants and maintain working conditionsInlet and exhaust clearance, heat rejection, environmental limits, and moisture management
Power electronicsMatch electrical output to the aircraftBus voltage, current limits, protection, and battery charge/discharge paths
Hybrid batterySupply supplemental power and retained recovery energyUsable energy, peak current, state of charge, and charging limits
Controller and telemetryCoordinate operation and expose faultsMessage definitions, units, validity, update rate, and aircraft response

The supporting hardware is often called the balance of plant. Air handling and power conversion have their own energy requirements, so a bare stack rating and net power delivered to the aircraft are different system boundaries. Water management also matters: DOE notes that a dry PEM performs poorly and that some systems use inlet humidification. Not every aircraft module needs the same compressor, humidifier, or cooling arrangement. Ask which auxiliary loads have already been deducted from a quoted output figure.

A real specification illustrates the distinction

Intelligent Energy's data sheet, printed May 2023 and still linked from its product page when checked, lists 2,400 W continuous output for the IE-SOAR 2.4. It separately lists 4,800 W peak power with the default hybrid batteries and up to 8,000 W with a suitable battery configuration. Those peaks are not continuous stack output. The same sheet lists UART/CAN communication, but the presence of a CAN connection does not establish autopilot compatibility or define the messages an aircraft will receive.

The public manual, revision 3.5, October 2022, illustrates why configuration matters: battery charging settings revert to configuration-file values if CAN communication is lost. A more detailed integrator manual is available separately. Confirm the documentation applicable to the actual hardware and software before designing around either public document.

Why the tank changes the endurance calculation

DOE gives hydrogen a lower heating value of 120 MJ/kg, equivalent to about 33.3 kWh/kg. That is the chemical energy of hydrogen alone. It excludes conversion losses and the mass of the tank, regulator, fuel cell, battery, mounts, and cooling equipment. Hydrogen also occupies substantial storage volume. These distinctions are central to DOE's hydrogen-storage guidance.

For an aircraft comparison, use useful electrical energy divided by the mass of the complete installed energy system. Comparing hydrogen's chemical energy per kilogram with a battery pack's delivered electrical energy per kilogram exaggerates the advantage.

Compressed gas and liquid hydrogen solve different packaging problems. Compressed gas requires a pressure vessel. Liquid hydrogen requires cryogenic storage and management of heat entering the tank. Neither should be treated as a tank substitution that leaves aircraft integration unchanged.

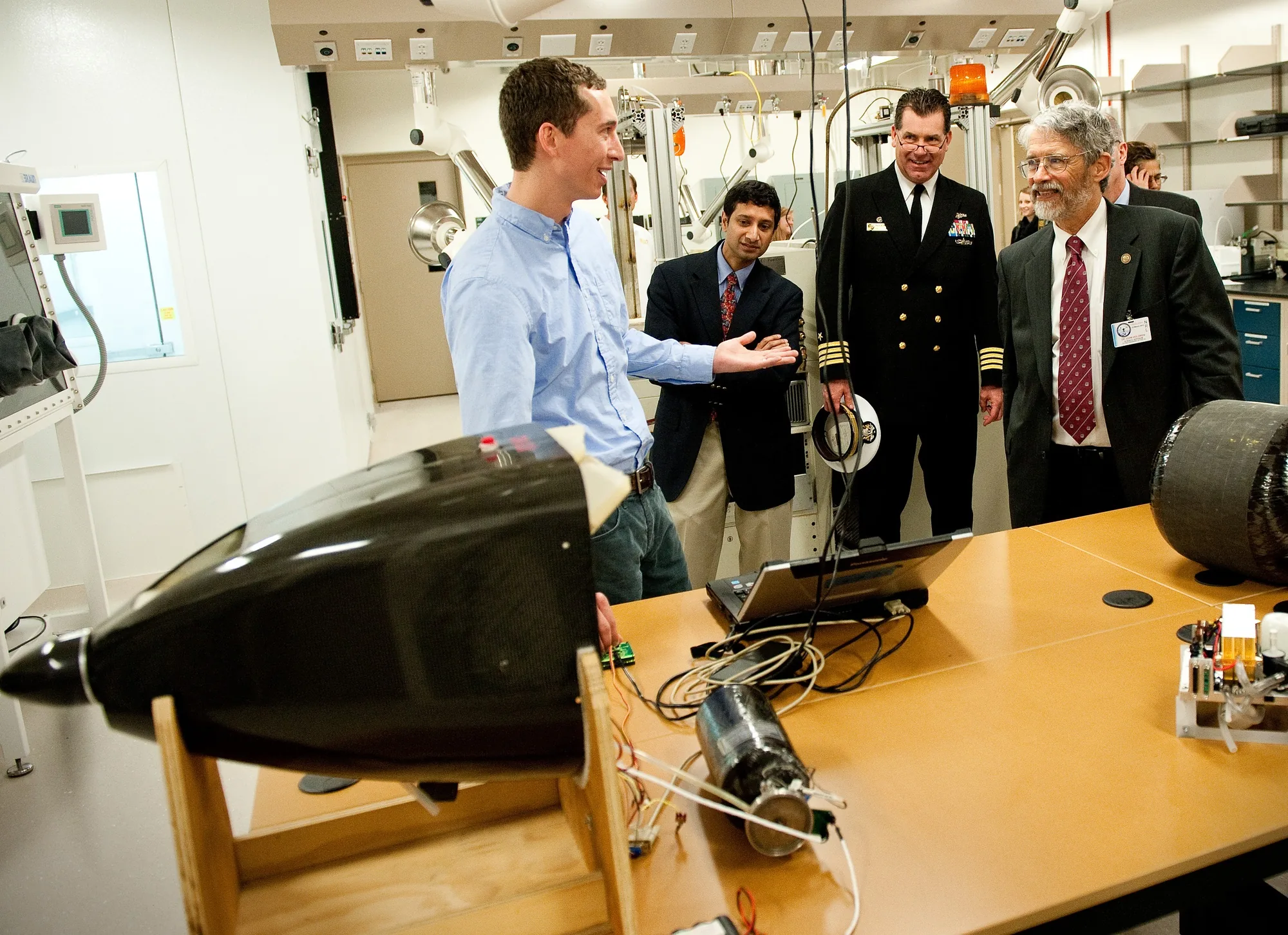

The Naval Research Laboratory's Ion Tiger provides a concrete historical example. In a May 2013 announcement, NRL reported a 48-hour, 1-minute flight with liquid hydrogen, compared with its earlier 26-hour, 2-minute gaseous-hydrogen flight. NRL attributed the extended endurance to a new cryogenic storage and delivery system and emphasized matching hydrogen boil-off to consumption. These are research-aircraft results, not expected flight times for a commercial multirotor.

Storage also changes ground operations. Evaluate how cylinders or liquid fuel reach the operating site, how usable fuel is confirmed, and what equipment and personnel are needed between sorties. A short aircraft refueling step does not describe the entire replenishment process. Likewise, water at the fuel cell's exhaust does not establish the emissions of producing and delivering its hydrogen.

A worked energy and power example

Consider a hypothetical aircraft carrying 0.30 kg of usable hydrogen. Assume 45% net electrical conversion efficiency from hydrogen to the aircraft bus and a constant 1.5 kW bus load, including propulsion, avionics, and payload. The hydrogen heating value comes from DOE; the other inputs are illustrative assumptions, not a product specification or measured flight.

Usable electrical energy = 0.30 kg × 33.3 kWh/kg × 0.45 = 4.50 kWh, rounded.

Energy-limited duration = 4.50 kWh ÷ 1.5 kW = 3.0 hours, rounded.

This simplified result excludes an operational reserve and assumes the stated efficiency already accounts for the fuel-cell auxiliaries and conversion losses. It also excludes net battery energy consumption. A real mission must allocate energy to climb, transit, work, return, landing, and contingency rather than consume the entire estimate on station.

Now impose a power constraint. If the installed fuel-cell system can supply only 1.2 kW continuously, the battery must cover a 0.3 kW deficit throughout that 1.5 kW flight. An assumed 0.15 kWh of battery energy available above the protected reserve covers that deficit for only 0.5 hour. This calculation assumes the battery can deliver the required current and expresses its usable energy at the bus.

The aircraft would reach its battery reserve with hydrogen still aboard. Increasing tank capacity would not fix that mismatch.

A practical energy controller must therefore track both fuel and battery state. A 2018 experimental UAV power-system study compared control strategies using a fuel cell, battery, programmable DC/DC converter, and electrical load. Its results depended on how each strategy used battery energy as well as hydrogen. Lower hydrogen consumption over a test is not, by itself, proof of longer sustainable flight if the battery ends at a lower charge. Compare control strategies with the same starting charge and an explicit allowance for any difference in ending charge.

Failures that can end a flight early

The following checks are an engineering synthesis of the cited DOE guidance and IE-SOAR manual. Actual detection thresholds and recovery actions belong to the qualified aircraft design.

Hydrogen supply faults. A leak creates both fuel-loss and ignition concerns. DOE's safe-use guidance emphasizes ventilation, leak detection, compatible materials, and trained handling. The IE-SOAR manual separately warns that incorrect inlet pressure or insufficient flow can damage its module. The aircraft needs an indication of supply trouble early enough to make its recovery plan useful.

Airflow, temperature, or moisture problems. Available output depends on maintaining the stack's working conditions. The IE-SOAR manual requires unobstructed cooling airflow and excludes operation in rain or snow. DOE's moisture guidance explains why simply enclosing a module against weather can create another integration problem. Validate the actual installation, including ground operation and hover, rather than assuming forward-flight cooling.

Battery depletion or unavailable charging. A battery repeatedly used for power assistance may no longer contain the energy assigned to recovery. Check its ending charge after the whole mission profile. Recharging in cruise requires spare fuel-cell output after the aircraft load and charging losses; time spent cruising alone does not establish that the reserve has recovered.

Loss of one source versus loss of the common power path. The IE-SOAR manual describes continued supply from the remaining stack module and battery after one stack module suffers a critical fault. That does not establish tolerance of every downstream failure. A shared cable or bus fault needs separate analysis; adding another energy source does not automatically create an independent route to the motors.

For each case, specify what the operator sees, what the aircraft does, and how much power and energy remain for that action. A fault message without a viable recovery capability is insufficient.

Where long endurance is useful

Hydrogen deserves consideration where a mission needs sustained electrical operation and the installed storage system can fit without losing the intended payload. Examples include extended observation, repeated survey passes, and long linear inspections. The useful metric is time completing the task at the required payload, not an unloaded endurance headline.

Fixed-wing aircraft can exploit long cruise or loiter segments; rotorcraft must sustain their hover demand. A 2025 Technical University of Munich conference paper describes a PEM fuel-cell and lithium-polymer battery system for an intermeshing-rotor UAV. Its institutional abstract reports subsystem and dynamic-load testing followed by out-of-ground-effect hover tests, and concludes that missions longer than one hour were feasible with the installed 380 g hydrogen capacity. The abstract does not establish that every flight lasted an hour or that another rotorcraft would achieve that endurance.

For a short sortie already completed comfortably with batteries, the additional storage and support system needs a clear operational benefit. For repeated long missions, compare payload retained, time on task, recovery reserve, fuel replenishment, and dispatch restrictions at the same mission conditions. These are application choices; neither research demonstration establishes a universal endurance multiplier.

What to establish before selecting a system

Request a mission power trace and a complete installed mass breakdown before accepting a flight-time claim. Then establish four things:

  1. Net continuous output supports the sustained load across the required conditions.
  2. The battery supplies every peak while retaining the specified recovery energy.
  3. Usable hydrogen, storage volume, and ground replenishment fit the operation.
  4. The integrated aircraft detects faults and completes its intended response with the power paths still available.

Hydrogen fuel cells can make long electric flights practical. Their value comes from matching storage, sustained output, transient power, and recovery to one mission, with representative integrated tests to confirm the result.
